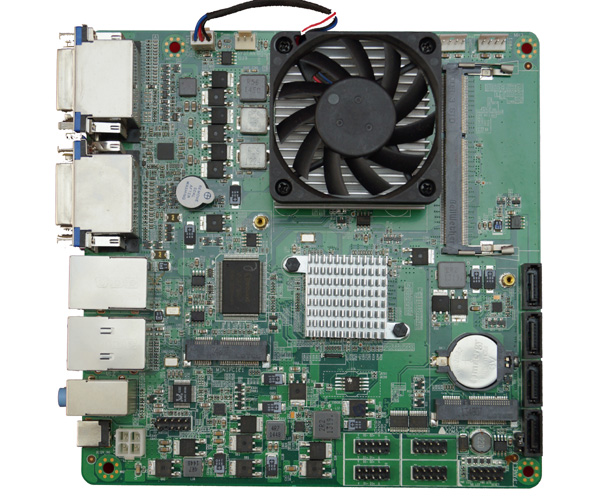

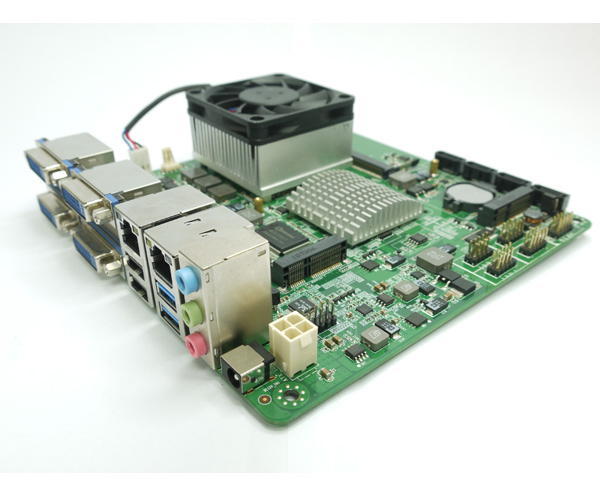

AMD ITX-COMAL-FS1R2-4DP-A2 Mini-ITX 主板

  1. 支持AMD Trinity and Richland FS1R2 APU A10-4600M
  2. 内建 AMD Radeon HD7660G显卡
  3. 2条SODIMM DDR3 内存插槽,最高支16GB, DDR3-1333,DDR3-1600MHz
  4. 双10/100/1000千兆网络接口
  5. 1个MINI-PCIE 插槽
  6. 1个MINI-SATA插槽
  7. 高清音频解码器
  8. 2个USB3.0接口
  9. 6个USB2.0接口
  10. 1个RS232接口
  11. 4个DVI-D 显示接口
  12. 标准MINI-ITX板型,尺寸170x170mm
  13. DC 12V 5A 供电



电邮查询：



产品规格

 General
CPU - AMD Trinity and Richland APU FS1R2 Quad Core APU A10-4600M
Chipset - AMD FS1R1 A4600M+HUDSON M3
DRAM - Dual Slot SO-DIMM supporting Dual-Channel DDR3-1066, DDR3-1600
- Maximum Capacity of System System: 16GB* (8GB x 2)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - AMI BIOS UEFI2.3
- EFI Shell
- PXE OpROM
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ HD7660G
- Shader cores: 384
- Base Frequency: 496MHz
- Max Frequency: 685MHz
- DirectX 11 3D Acceleration Feature supported
- Support 4 DVI-D Display (Extended & Clone modes)
- Supported muti screen splicing (4x1,3x1,2x2 mode)
- Support 4K (4096x3072 pixels) Video Decoding & Display
Audio - Realtek ALC662 High Definition Audio Codec
LAN - Dual Realtek RTL8111DE Gigabit Ethernet Controller
- Supports Wake-On-LAN
Wireless - On-board Mini-Card for WiFi Module
 Expansion / Connectivity

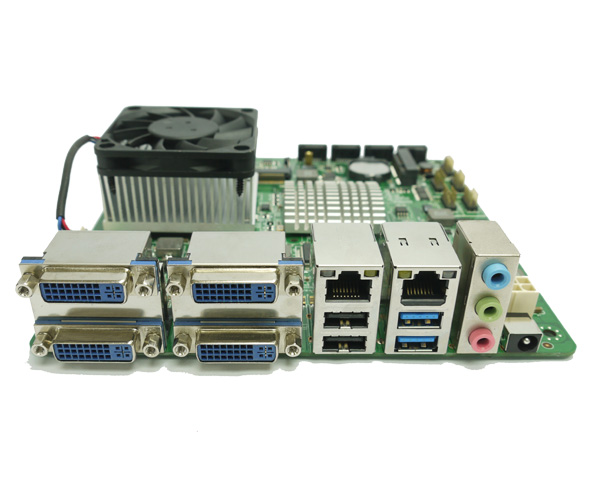

Rear Panel - 4 x DVI-D Ports
- 2 x USB3.0 Ports
- 2 x USB2.0 Ports
- 2 x RJ45 LAN Ports
- Audio Jacks: Mic-In, Speaker-Out, Line-Out
- 12V Power Supply
On-Board Header & Connectors - 1 x Mini-SATA Port (supporting Solid State Harddisk)
- 1 x Mini-PCIe Card (supporting Half-Size or Full-Size WiFi Card)
- 4 x SATA3 6Gb/s connector
- 2 x USB2.0 Header
- 1 x HD-Audio Audio Header
- 1 x RS232 Serial Port Header
 Other Features / Miscellaneous
Form Factor - Mini-ITX: 170mm x 170mm
Power - 5A @ 12V DC Power Adaptor
Operating Temperature - 0~60℃
OS Support - Microsoft® Windows® 8.1 (32-bit & 64-bit)
- Microsoft® Windows® 8 (32-bit & 64-bit)
- Microsoft® Windows® 7 (32-bit & 64-bit)


软件下载

 Windows 8.1 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 8.1 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 8 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 8 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 7 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW


 Windows 7 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW


 Windows Vista 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW


 Windows Vista 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW


 Windows XP 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW


 Windows XP 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW


 BIOS Update
  If your system is stable, there is NO need to update BIOS
Version Date Description Download
Site
v1.0
 2014-01-01 Initial Release
 HK CN TW


手册

 Manual
Date Documents Download
Site
2014-02-24
 User Manual
 HK CN TW
