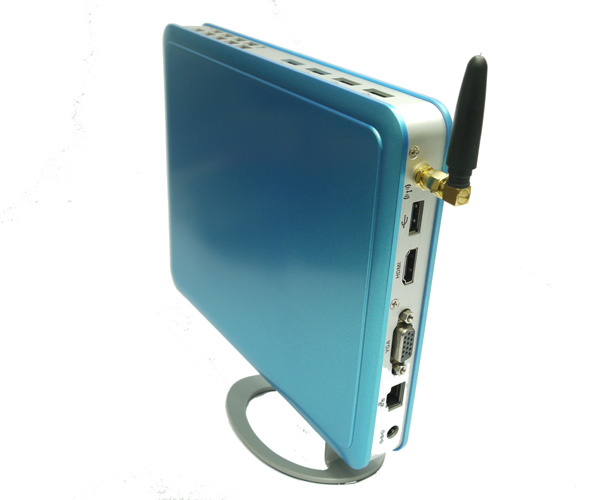

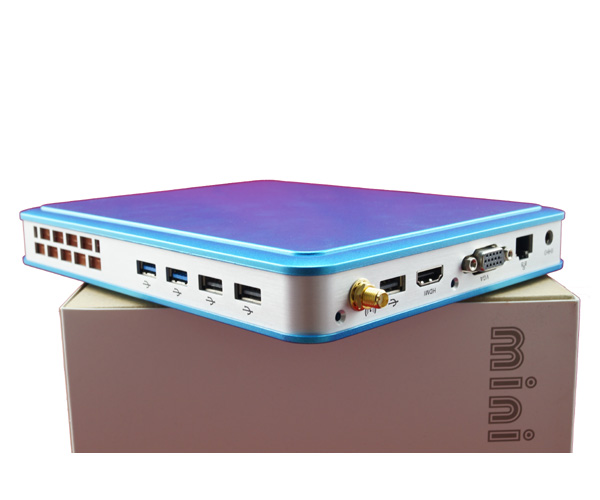

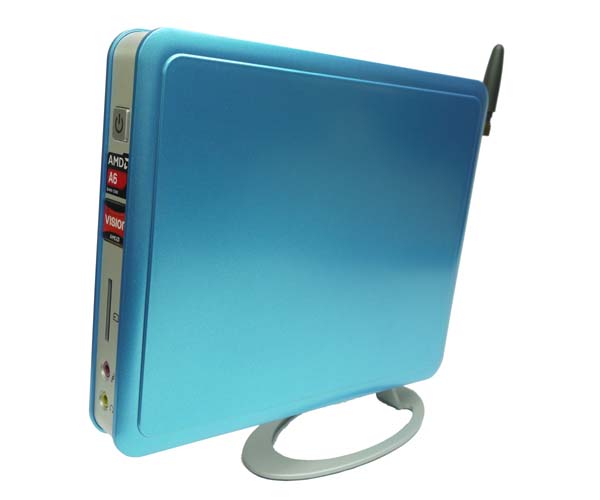

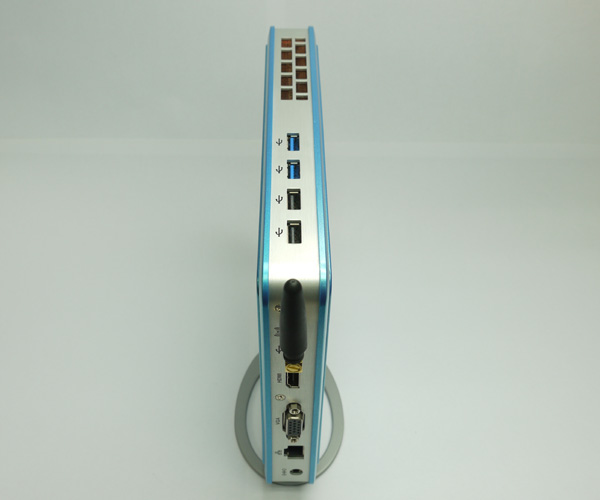

AMD SABINE 迷你主机

  1. AMD FS1 APU+HUDSON M3 Chipset
  2. 支持AMD Llano FS1 APU(A6,A8可选)
  3. 内置AMD Radeon HD6xxx系显卡(支持1080P高清硬解码)
  4. 支持双通道DDR3 1066/1333MHz 内存,最大支持16GB(标配4G)
  5. Realtek RT8111E 10/100/1000M 网卡
  6. 内置 IEEE802.11b/g 无线网卡
  7. 内置声卡
  8. 支持 SSD固态硬盘(最小配置64GB,可选)
  9. 支持 2.5寸硬盘(容量可选)
  10. 2个USB3.0接口
  11. 3个USB2.0接口
  12. 3合1读卡器
  13. HDMI & VGA 显示接口
  14. 产品尺寸203mmx162mmx28mm
  15. DC 12V 供电



电邮查询：



产品规格

 General
CPU - AMD LIANO FS1 (A6,A8)
Chipset - AMD FS1 APU+HUDSON M3
DRAM - Dual Slot SO-DIMM supporting DDR3-1066, DDR3-1333MHz
- Maximum Capacity of System System: 16GB* (8GB x 2)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - AMI EFI 8M Flash
- EFI Shell
- PXE OpROM
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ HD7xxx APU
- Supporting HDMI 1.4a 3D Display - DirectX 11 3D Acceleration Feautrues supported - Support Dual Screen (D-SUB &s HDMI)
- Max. Shared Memory 1GB
Audio - Realtek ALC662 High Definition Audio Codec
LAN - Realtek RTL8111EL Gigabit Ethernet Controller
- Supports Wake-On-LAN
Wireless - AR5B93/95 IEEE802.11 b/g/n WiFi 300Mbps Wireless Half Mini PCI-E Card
- 1x2 MIMO
 Expansion / Connectivity
Storage - 1 x SATA3 6Gb/s connector
- Support 2.5’ Hard Disk or SSD
- 1 x mini-SATA Port (supporting mSATA SSD)
Slots - 1 x VGA D-SUB Port
- 1 x HDMI
- 1 x RJ45 Ethernet LAN Port
- 3 x USB 2.0
- 2 x USB 3.0
- 1 x PCIe MiniCard Slot (for WiFi)
- 3.5mm Microphone In (Red)
- 3.5mm Headphone Out (Green)
Card Reader - Realtek card reader ( RTS5138 support MS, SD,MMC)
- Support Secure Digital TM (SD), MultiMediaCard TM (MMC), SDHC, Mini-SD, Micro-SD (T-flash),
  RS-MMC, Mobile-MMC and MMC-micro
 Other Features / Miscellaneous
Form Factor - Ultra Slim: 20.3cm x 16.2cm x 2.8cm
Power - 5A @ 12V DC Power Adaptor
OS Support - Microsoft® Windows® 8.1 (32-bit & 64-bit)
- Microsoft® Windows® 8 (32-bit & 64-bit)
- Microsoft® Windows® Vista (32-bit & 64-bit)
- Microsoft® Windows® 7 (32-bit & 64-bit)
- Microsoft® Windows® XP


软件下载

 Windows 8.1 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 20MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8.1 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 20MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows 8 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows 7 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows 7 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.297 22/7/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows Vista 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows Vista 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows XP 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows XP 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 BIOS Update
  If your system is stable, there is NO need to update BIOS
Version Date Description Download
Site
v1.0
 2014-01-01 Initial Release
 HK CN TW


手册

 Manual
Date Documents Download
Site
2014-02-24
 User Manual
 HK CN TW
