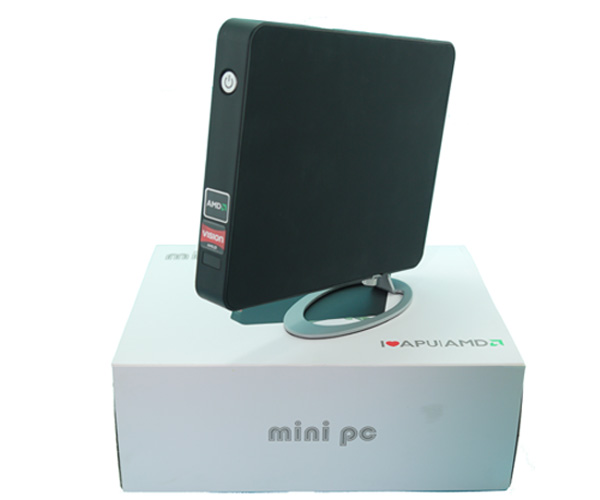

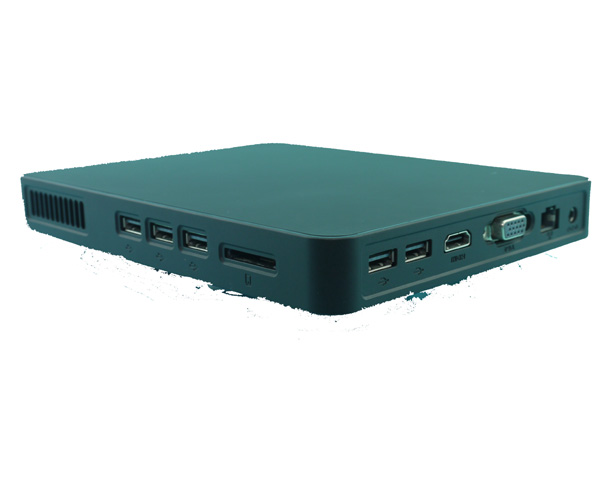

AMD Brazos 系列 E350 迷你主機

  1. AMD E-Series E-350 1.6GHz 雙核 APU
  2. 內建 AMD Radeon HD6310 顯卡
  3. 雙通道 DDR3 SO-DIMM 內存, 最高支援 16GB (8G x 2) DDR3-1066, DDR3-1066
  4. 10/100/1000千兆網絡接口
  5. 內置 IEEE802.11b/g 無線網卡
  6. 內置聲卡
  7. 支持 2.5寸硬盤(容量可選)
  8. 5個USB2.0接口
  9. 3合1讀卡器
  10. HDMI & VGA 顯示接口
  11. 產品尺寸203mm x 163mm x 25mm
  12. 附送LCD顯示器背扣支架
  13. DC 12V 供電



電郵查詢：



產品規格

 General
CPU - AMD Dual-Core E-350 1.6GHz Integrated Graphics APU; 18W TDP
Chipset - AMD A50M Fusion Controller Hub
DRAM - Dual Slot SO-DIMM supporting Dual-Channel DDR3-1066, DDR3L-1066
- Maximum Capacity of System System: 16GB* (8GB x 2)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - AMI BIOS UEFI2.3
- EFI Shell
- PXE OpROM
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ HD6310 APU
- Base Frequency 500MHz
- Support Dual Screen (D-SUB &s HDMI)
- Max. Shared Memory 384MB
- HDMI with Max. Resolution: 2500x1600
- D-Sub with Max. Resolution: 2047x1536
Audio - Realtek ALC662 High Definition Audio Codec
LAN - Realtek RTL8111DL Gigabit Ethernet Controller
- Support Deep Slumber Mode (DSM) Power Saving Feature
- Supports Wake-On-LAN
Wireless - AR5B93/95 IEEE802.11 b/g/n WiFi 300Mbps Wireless Half Mini PCI-E Card
- 1x2 MIMO
 Expansion / Connectivity
Storage - 1 x SATA3 6Gb/s connector
- Support 2.5’ Hard Disk or SSD
Slots - 1 x VGA D-SUB Port
- 1 x HDMI
- 2 x RJ45 Ethernet LAN Port
- 1 x PCIe MiniCard Slot (for WiFi)
- 3.5mm Microphone In (Red)
- 3.5mm Headphone Out (Green)
- 3.5mm Line-Out (Black)
Card Reader - Realtek card reader ( RTS5138 support MS, SD,MMC)
- Support Secure Digital TM (SD), MultiMediaCard TM (MMC), SDHC, Mini-SD, Micro-SD (T-flash),
  RS-MMC, Mobile-MMC and MMC-micro
 Other Features / Miscellaneous
Form Factor - Ultra Slim: 20.3cm x 16.3cm x 2.5cm
- Metal Stand
- LCD Mounting Kit
Power - 4A @ 12V DC Power Adaptor
OS Support - Microsoft® Windows® 8.1 (32-bit & 64-bit)
- Microsoft® Windows® 8 (32-bit & 64-bit)
- Microsoft® Windows® Vista (32-bit & 64-bit)
- Microsoft® Windows® 7 (32-bit & 64-bit)
- Microsoft® Windows® XP


軟件下載

 Windows 8.1 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 20MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8.1 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 20MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 7 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 7 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.297 22/7/2014 		HK CN TW


 Windows Vista 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW


 Windows Vista 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW


 Windows XP 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW


 Windows XP 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW


 BIOS Update
  If your system is stable, there is NO need to update BIOS
Version Date Description Download
Site
v1.0
 2014-01-01 Initial Release
 HK CN TW


說明書

 Manual
Date Documents Download
Site
2014-02-24
 User Manual
 HK CN TW
