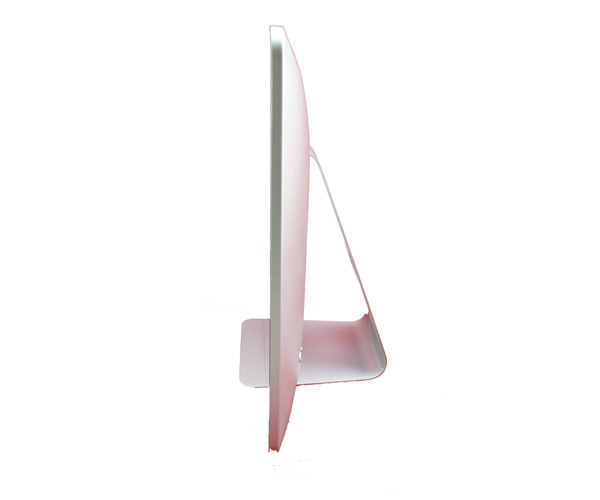

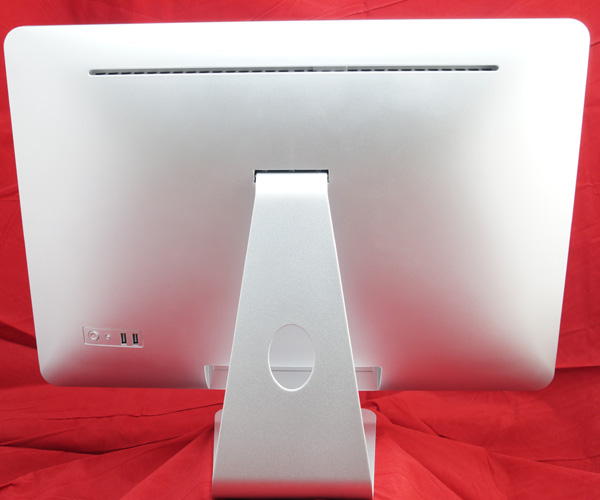

AMD All-in-One PC ZM-A6-24-AIO-S

  1. AMD A6-3420 Quad-Core 1.5GHz (2.4GHz Turbo)
  2. Integrated AMD Radeon HD6520G Graphics
  3. Dual Channel DDR3 Memory, supporting up to 16GB DDR3-1333
  4. 10/100/1000 Gigabit Ethernet Port
  5. Integrated IEEE802.11b/g/n Wireless Network
  6. High Definition Audio Codec
  7. 4 USB2.0 Port
  8. 2 USB3.0 Port
  9. HDMI Port & VGA Port
  10. 24” LED Monitor (1920 x 1080)
  11. 19-Volt DC Power



Request More Info on



Product Specifications

 General
CPU - AMD A6-3420 Quad-Core 4-Thread 1.5GHz (2.4GHz Turbo)
Chipset - AMD A70M Fusion Controller Hub
DRAM - Dual Slot SO-DIMM supporting Dual-Channel DDR3-1333
- Maximum Capacity of System System: 16GB* (8GB x 2)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - AMI BIOS UEFI2.3
- EFI Shell
- PXE OpROM
 Audio, Video and Networking
Graphics - Integrated AMD Radeon HD6520G
- Base Frequency 500MHz
- Support Dual Screen (D-SUB &s HDMI)
Audio - Realtek ALC662 High Definition Audio Codec
LAN - Realtek RTL8111E Gigabit Ethernet Controller
- Support Deep Slumber Mode (DSM) Power Saving Feature
- Supports Wake-On-LAN

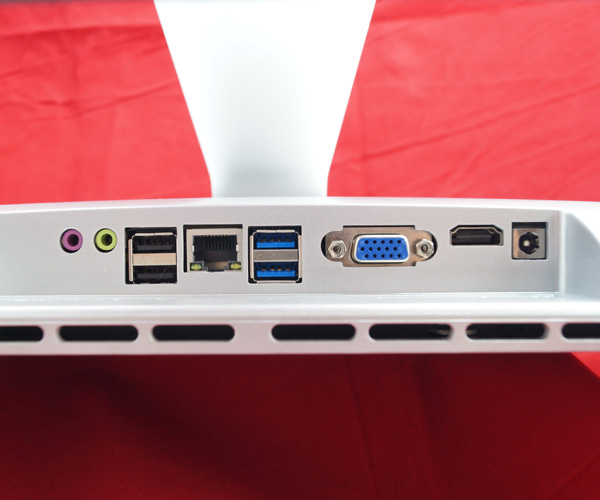

 Expansion / Connectivity
Storage - 1 x SATA3 6Gb/s connector
- Support 2.5’ Hard Disk or SSD
Slots - 1 x VGA D-SUB Port
- 1 x HDMI
- 1 x RJ45 Ethernet LAN Port
- 1 x PCIe MiniCard Slot (for WiFi)
- 4 x USB 2.0 Ports
- 2 x USB 3.0 Ports
- 3.5mm Microphone In (Red)
- 3.5mm Headphone Out (Green)
Speaker - Stereo 8Ω (2 x 2W) Speakers
Camera - 1.2-Mega Pixel Camera
 Other Features / Miscellaneous
Weight - 10KGs
Display - 24 inch LED LCD Display (1920 x 1080)
Power - 3.4A @ 19A Power Adaptor
OS Support - Microsoft® Windows® 8.1 (32-bit & 64-bit)
- Microsoft® Windows® 8 (32-bit & 64-bit)
- Microsoft® Windows® Vista (32-bit & 64-bit)
- Microsoft® Windows® 7 (32-bit & 64-bit)
- Microsoft® Windows® XP


Software Download

 Windows 8.1 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8.1 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows 8 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows 7 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows 7 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.297 22/7/2014 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows Vista 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows Vista 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows XP 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 Windows XP 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW
WiFi
 2013-05-30 36.7MB Realtek RTL8188CE
2007.12.0419.2013 30/5/2013 		HK CN TW


 BIOS Update
  If your system is stable, there is NO need to update BIOS
Version Date Description Download
Site
v1.0
 2014-01-01 Initial Release
 HK CN TW


Manuals

 Manual
Date Documents Download
Site
2014-02-24
 User Manual
 HK CN TW
