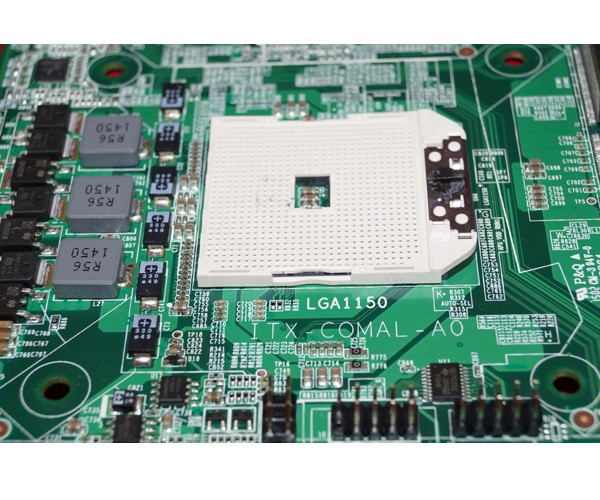

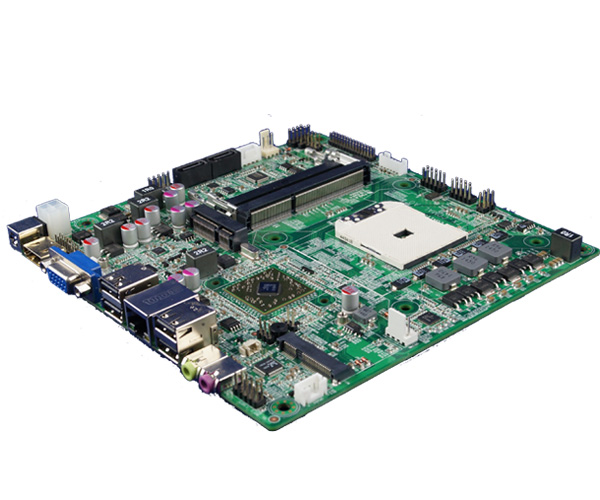

AMD ITX-COMAL-A0 Mini-ITX Motherboard

Suporting AMD Trinity and Richland FS1R2 APU(A6 A8 A10)
Integrated AMD Radeon HD7xxx Graphics
Dual Channel DDR3 Memory,
supporting up to 16GB DDR3-1333/1600/1866
Realtek RTL8111E 10/100/1000 Gigabit Ethernet Port
1 x Mini-PCIe Slot (for WiFi MiniCard)
1 x Mini-SATA Slot (for SSD)
High Definition Audio Codec
8 USB2.0 Port
2 USB3.0 Port
RS232 Serial Port
HDMI Potr & VGA Port
Standard Mini-ITX Form Factor
12-19Volt DC Power

Request More Info on

Product Specifications

General
CPU	- AMD Trinity and Richland APU FS1R2 CPU(A6,A8,A10)
Chipset	- - AMD FS1 APU+HUDSON M3
DRAM	- Dual Slot SO-DIMM supporting Dual-Channel DDR3-1066, DDR3-1600, DDR3-1866 - Maximum Capacity of System System: 16GB* (8GB x 2) *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- AMI BIOS UEFI2.3 - EFI Shell - PXE OpROM
Audio, Video and Networking
Graphics	- Integrated AMD Radeon™ HD7xxx - Max. Shared Memory: 512MB - Support Dual Screen (VG A& HDMI or VGA LVDS or LVDS &HDMI) - DirectX 11 3D Acceleration Features supported - HDMI 1.4a 3D Dispplay( 1080P at 30Hz) - LVDS: Dual-link 24bit LVDS supported
Audio	- Realtek ALC662 High Definition Audio Codec
LAN	- Realtek RTL8111DE Gigabit Ethernet Controller - Supports Wake-On-LAN
Wireless	- On-board Mini-Card for WiFi Module
Expansion / Connectivity

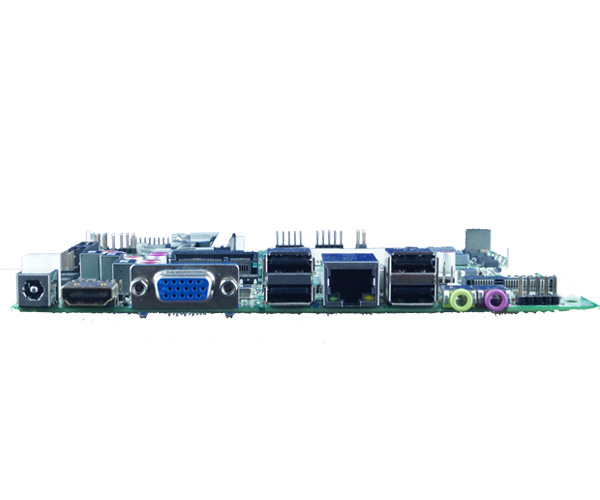

Rear Panel	- 1 x VGA D-SUB Port - 1 x HDMI Port - 1 x USB3.0 Ports - 1 x USB2.0 Ports - 1 x RJ45 LAN Port - 3.5mm Microphone In (Red) - 3.5mm Headphone Out (Green) - 12~19V DC Power Supported
On-Board Header & Connectors	- 1 x Mini-SATA Port (supporting Solid State Harddisk) - 1 x Mini-PCIe Card (supporting Half-Size or Full-Size WiFi Card) - 2 x SATA3 6Gb/s connector - 2 x SATA Power - 3 x USB2.0 Header - 1 x HD-Audio Audio Header - 1 x LVDS Header - 1 x RS232 Serial Port Header
Other Features / Miscellaneous
Form Factor	- Mini-ITX: 170mm x 170mm
Power	- 12-19V DC Power Adaptor
Operating Temperature	- 0~60℃
OS Support	- Microsoft^® Windows^® 8.1 (32-bit & 64-bit) - Microsoft^® Windows^® 8 (32-bit & 64-bit) - Microsoft^® Windows^® 7 (32-bit & 64-bit)

Software Download

Windows 8.1 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	48MB	AMD South Bridge Driver 14.12 9/12/2014	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 8.1 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	48MB	AMD South Bridge Driver 14.12 9/12/2014	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 8 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 8 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 7 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 7.091 27/1/2015	HK	CN	TW

Windows 7 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 7.091 27/1/2015	HK	CN	TW

Windows Vista 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 13.12 18/12/2013	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 106.12 27/1/2015	HK	CN	TW

Windows Vista 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 13.12 18/12/2013	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 106.12 27/1/2015	HK	CN	TW

Windows XP 64-bit
Driver	Date	Size	Description	Download Site
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.74 14/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.4 25/4/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 5.830 7/1/2015	HK	CN	TW

Windows XP 32-bit
Driver	Date	Size	Description	Download Site
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.74 14/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.4 25/4/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 5.830 7/1/2015	HK	CN	TW

BIOS Update If your system is stable, there is NO need to update BIOS
Version	Date	Description	Download Site
v1.0	2014-01-01	Initial Release	HK	CN	TW

Manuals

Manual
Date	Documents	Download Site
2014-02-24	User Manual	HK	CN	TW
