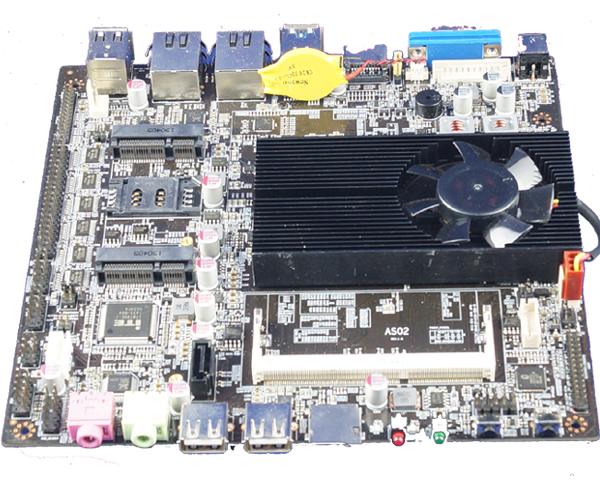

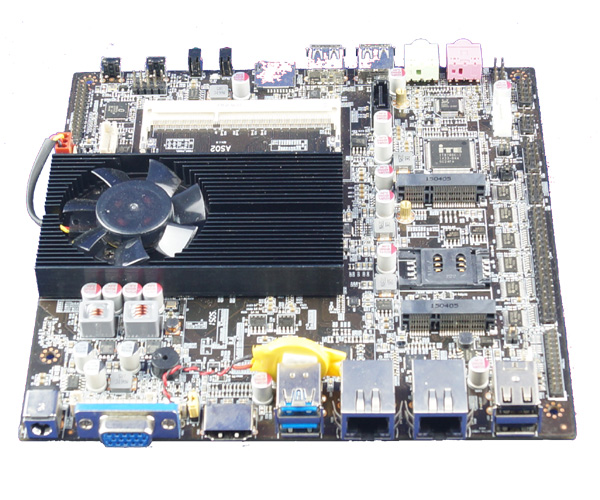

AMD ITX-KABINI-AS02 Mini-ITX Motherboard

  1. AMD x86 System-on-Chip Processor – Kabini / Stepple Enagle
  2. Integrated AMD Radeon HD8000 Series Graphics
  3. Single DDR3 SO-DIMM, supporting up to 4GB DDR3-1600 MHz
  4. Realtek RTL8111F 10/100/1000 Gigabit LAN
  5. 1 SATA 3.0 Port
  6. 1 x Mini-PCIe Slot (for WiFi MiniCard)
  7. 1 x Mini-SATA Slot (for SSD)
  8. High Definition Audio Codec
  9. 2 USB2.0 Ports
  10. 2 USB3.0 Ports
  11. RS232 Serial Port
  12. HDMI Potr & VGA Port
  13. Standard Mini-ITX Form Factor
  14. 12 Volt DC IN Power



Request More Info on



Product Specifications

 General
CPU - AMD x86 SoC Processor – Kabini / Stepple Enagle
DRAM - Single Slot SO-DIMM supporting DDR3-1600
- Support up to 4GB
BIOS - EFI BIOS
- ITX IT8786 SuperIO
- Suport RPL/PXE
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ HD8000-Series
- Support UVD (1080p + 1080i)
- VGA max resolution: 2048 x 1536 at 60Hz 30bpp
- HDMI max resolution: 4096 x 2160 at 30Hz 18,24,30bpp
- HDMI Port
- LVDS: Dual-link 24bit LVDS supported
Audio - Realtek ALC662-VD0 5.1 High Definition Audio Codec
LAN - Dual Realtek RTL8111F Gigabit Ethernet Controller
- Supports Wake-On-LAN
Wireless - On-board Mini-Card for WiFi Module

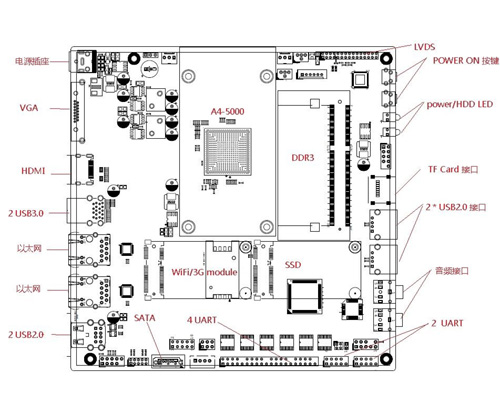

 Expansion / Connectivity
Rear Panel - 1 x VGA D-SUB Port
- 1 x HDMI Port
- 2 x RJ45 LAN Ports
- 2 x USB3.0 Ports
- 2 x USB2.0 Ports
- 12V DC IN Power (12V / 3A)
Front Connector - Power, Reset Button
- Power, HDD LED
- 1 x Audio Line Out, Mic
- 2 x USB connector for 4 additional USB 2.0 Ports
- 2 x USB connectors
- 1 x microphone in
- 1 x speaker out
On-Board Header - 1 x SATA connector
- 1 x SATA Power
- 1 x LVDS signal connector (header 1x6 pitch 2.0mm)
- 1 x LVDS connector (2x15 2.0mm pitch)
- 1 x SIM Card connector
- 2 x Fan connectors
- 6 x Serial Ports
 Other Features / Miscellaneous
Form Factor - Mini-ITX: 170mm x 170mm
Power - 12V DC IN Power (12V / 3A)
OS Support - Microsoft® Windows® 8.1 (32-bit & 64-bit)
- Microsoft® Windows® 8 (32-bit & 64-bit)
- Microsoft® Windows® 7 (32-bit & 64-bit)


Software Download

 Windows 8.1 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 20MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8.1 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 20MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 8 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 7 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.298 25/8/2014 		HK CN TW


 Windows 7 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.297 22/7/2014 		HK CN TW


 Windows Vista 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW


 Windows Vista 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
7.7.0.498 30/4/2010 		HK CN TW


 Windows XP 64-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW


 Windows XP 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW
WiFi
 2014-08-25 2.2MB Atheros AR5B93/95
10.0.0.274 28/11/2013 		HK CN TW


 BIOS Update
  If your system is stable, there is NO need to update BIOS
Version Date Description Download
Site
v1.0
 2014-01-01 Initial Release
 HK CN TW


Manuals

 Manual
Date Documents Download
Site
2014-02-24
 User Manual
 HK CN TW
