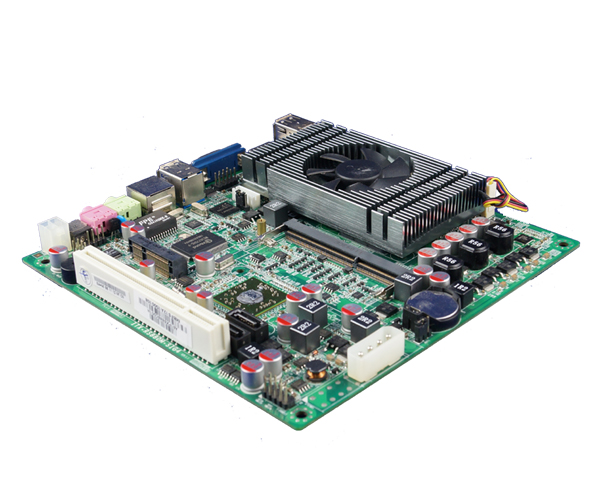

AMD ITX-RS880M-S1G4-A2 Mini-ITX Motherboard

Suporting AMD S1G4 CPU(P820, P520, P320, N330, N620)
Integrated AMD Radeon HD4200 Graphics
Single Channel DDR3 SO-DIMM, supporting up to 4GB DDR3-1066/1333 MHz
Realtek RTL8111DL 10/100/1000 Gigabit LAN
1 x Mini-PCIe Slot (for WiFi MiniCard)
1 x Mini-SATA Slot (for SSD)
High Definition Audio Codec
2 USB2.0 Port
6 USB3.0 Port
RS232 Serial Port
VGA & HDMI Ports
Standard Mini-ITX Form Factor
12-Volt DC Power

Request More Info on

Product Specifications

General
CPU	- AMD Trinity APU FS1R2 Quad Core APU A6-4600M
Chipset	- AMD FS1R1 A4600M+HUDSON M3
DRAM	- Dual Slot SO-DIMM supporting Dual-Channel DDR3-1066, DDR3-1600 - Maximum Capacity of System System: 16GB* (8GB x 2) *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- AMI BIOS UEFI2.3 - EFI Shell - PXE OpROM
Audio, Video and Networking
Graphics	- Integrated AMD Radeon™ HD7660G - Shader cores: 384 - Base Frequency: 496MHz - Max Frequency: 685MHz - DirectX 11 3D Acceleration Feature supported - Support 4 DVI-D Display (Extended & Clone modes) - Supported muti screen splicing (4x1,3x1,2x2 mode) - Support 4K (4096x3072 pixels) Video Decoding & Display
Audio	- Realtek ALC662 High Definition Audio Codec
LAN	- Dual Realtek RTL8111DE Gigabit Ethernet Controller - Supports Wake-On-LAN
Wireless	- On-board Mini-Card for WiFi Module
Expansion / Connectivity
Rear Panel	- 4 x DVI-D Ports - 2 x USB3.0 Ports - 2 x USB2.0 Ports - 2 x RJ45 LAN Ports - Audio Jacks: Mic-In, Speaker-Out, Line-Out - 12V Power Supply
On-Board Header & Connectors	- 1 x Mini-SATA Port (supporting Solid State Harddisk) - 1 x Mini-PCIe Card (supporting Half-Size or Full-Size WiFi Card) - 4 x SATA3 6Gb/s connector - 2 x USB2.0 Header - 1 x HD-Audio Audio Header - 1 x RS232 Serial Port Header
Other Features / Miscellaneous
Form Factor	- Mini-ITX: 170mm x 170mm
Power	- 5A @ 12V DC Power Adaptor
Operating Temperature	- 0~60℃
OS Support	- Microsoft^® Windows^® 8.1 (32-bit & 64-bit) - Microsoft^® Windows^® 8 (32-bit & 64-bit) - Microsoft^® Windows^® 7 (32-bit & 64-bit)

Software Download

Windows 8.1 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	48MB	AMD South Bridge Driver 14.12 9/12/2014	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 8.1 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
AMD	2014-05-21	48MB	AMD South Bridge Driver 14.12 9/12/2014	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 8 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 8 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 8.037 27/1/2015	HK	CN	TW

Windows 7 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 7.091 27/1/2015	HK	CN	TW

Windows 7 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.12 9/12/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 7.091 27/1/2015	HK	CN	TW

Windows Vista 64-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 13.12 18/12/2013	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 106.12 27/1/2015	HK	CN	TW

Windows Vista 32-bit
Driver	Date	Size	Description	Download Site
AMD	2014-05-21	26MB	AMD South Bridge Driver 13.4 24/4/2013	HK	CN	TW
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.75 21/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 13.12 18/12/2013	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 106.12 27/1/2015	HK	CN	TW

Windows XP 64-bit
Driver	Date	Size	Description	Download Site
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.74 14/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.4 25/4/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 5.830 7/1/2015	HK	CN	TW

Windows XP 32-bit
Driver	Date	Size	Description	Download Site
Audio	2014-05-21	119MB	Realtek ALC662 5.1 Channel High Definition Audio Codec R2.74 14/5/2014	HK	CN	TW
Graphics	2014-09-12	204MB	AMD Catalyst Driver 14.4 25/4/2014	HK	CN	TW
LAN	2015-01-27	5.7MB	Realtek 10M/100M/1000M Ethernet 5.830 7/1/2015	HK	CN	TW

BIOS Update If your system is stable, there is NO need to update BIOS
Version	Date	Description	Download Site
v1.0	2014-01-01	Initial Release	HK	CN	TW

Manuals

Manual
Date	Documents	Download Site
2014-02-24	User Manual	HK	CN	TW
