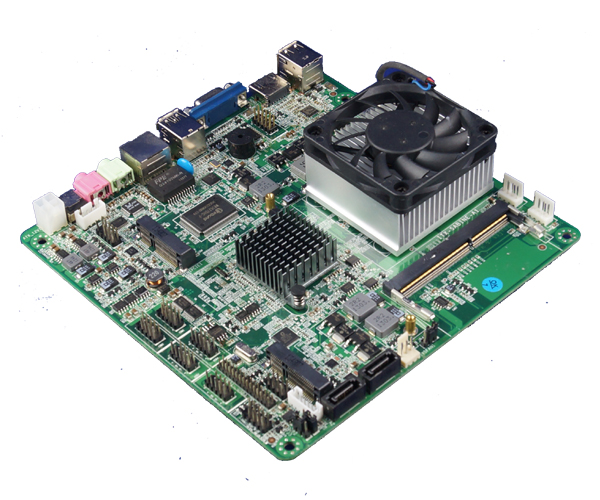

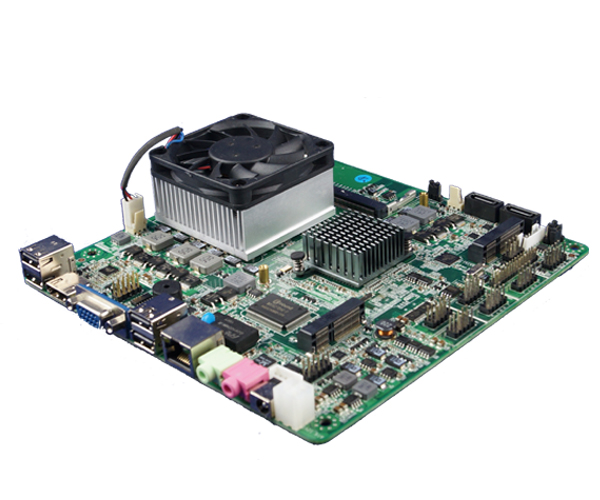

AMD ITX-SABINE-A1 Mini-ITX Motherboard

  1. Support AMD Llano APU FS1 APU(A4,A6 & A8)
  2. Integrated AMD Radeon HD6xx Graphics
  3. Dual Channel DDR3 SO-DIMM, supporting up to 4GB DDR3-1066/1333/1600 MHz
  4. Realtek RTL8111E 10/100/1000 Gigabit LAN
  5. 1 x Mini-PCIe Slot (for WiFi MiniCard)
  6. 1 x Mini-SATA Slot (for SSD)
  7. High Definition Audio Codec
  8. 8 USB2.0 Ports
  9. 2 USB3.0 Ports
  10. RS232 Serial Port
  11. HDMI Port & VGA Port
  12. Standard Mini-ITX Form Factor
  13. 12 Volt DC IN Power



Request More Info on



Product Specifications

 General
CPU - AMD LIANO APU FS1 APU(A4,A6,A8)
Chipset - AMD FS1 APU+HUDSON M3
DRAM - Dual SO-DIMM supporting DDR3-1066, DDR3-1333,DDR3-1600MHz
- Support up to 16GB
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - AMI BIOS UEFI2.3
- EFI Shell
- PXE OpROM
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ HD6000-Series
- Max. Shared Memory: 1GB
- Support Dual Screen (VG A& HDMI or VGA LVDS or LVDS &HDMI)
- DirectX 11 3D Acceleration Features supported
- HDMI 1.4a 3D Display( 1080P at 30Hz)
- LVDS: Dual-link 24bit LVDS supported
Audio - Realtek ALC662 High Definition Audio Codec
LAN - Realtek RTL8111E Gigabit Ethernet Controller
- Supports Wake-On-LAN
 Expansion / Connectivity

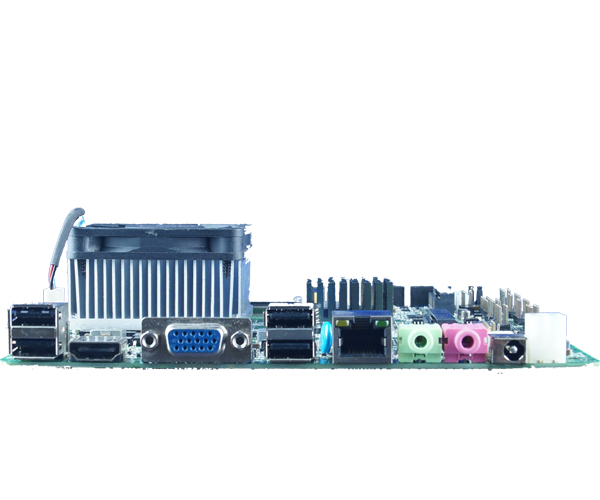

Rear Panel - 1 x VGA D-Sub Port
- 1 x HDMI Port
- 1 x RJ45 LAN Ports
- 2 x USB3.0 Ports
- x USB2.0 Ports
- 12V DC IN Power
Front Connector - Power, Reset Button
- Power, HDD LED
- 1 x Audio Line Out, Mic
- 2 x USB connector for 4 additional USB 2.0 Ports
- 2 x USB connectors
- 1 x microphone in
- 1 x speaker out
On-Board Header - 1 x Mini-SATA connector (for Solid State Disk)
- 1 x Mini-PCIe (for Wireless Module)
- 2 x SATA connector
- 2 x USB 2.0 Header (2x5)
- 1 x Audio Heaer
- 1 x LVDS connector
- 1 x RS-233 UART Port header
 Other Features / Miscellaneous
Form Factor - Mini-ITX: 170mm x 170mm
Power - 12V DC IN Power
OS Support - Microsoft® Windows® 8.1 (32-bit & 64-bit)
- Microsoft® Windows® 8 (32-bit & 64-bit)
- Microsoft® Windows® 7 (32-bit & 64-bit)


Software Download

 Windows 8.1 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 8.1 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 48MB AMD South Bridge Driver
14.12 9/12/2014 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 8 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 8 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
8.037 27/1/2015 		HK CN TW


 Windows 7 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW


 Windows 7 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.12 9/12/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
7.091 27/1/2015 		HK CN TW


 Windows Vista 64-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW


 Windows Vista 32-bit
Driver Date Size Description Download
Site
AMD
 2014-05-21 26MB AMD South Bridge Driver
13.4 24/4/2013 		HK CN TW
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.75 21/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
13.12 18/12/2013 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
106.12 27/1/2015 		HK CN TW


 Windows XP 64-bit
Driver Date Size Description Download
Site
Card Reader
 2013-08-21 23MB Realtek RTS5138 Card Reader
6.2.9200.30164 21/8/2013 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW


 Windows XP 32-bit
Driver Date Size Description Download
Site
Audio
 2014-05-21 119MB Realtek ALC662 5.1 Channel High Definition Audio Codec
R2.74 14/5/2014 		HK CN TW
Graphics
 2014-09-12 204MB AMD Catalyst Driver
14.4 25/4/2014 		HK CN TW
LAN
 2015-01-27 5.7MB Realtek 10M/100M/1000M Ethernet
5.830 7/1/2015 		HK CN TW


 BIOS Update
  If your system is stable, there is NO need to update BIOS
Version Date Description Download
Site
v1.0
 2014-01-01 Initial Release
 HK CN TW


Manuals

 Manual
Date Documents Download
Site
2014-02-24
 User Manual
 HK CN TW
